MGB/C Original Body Panels

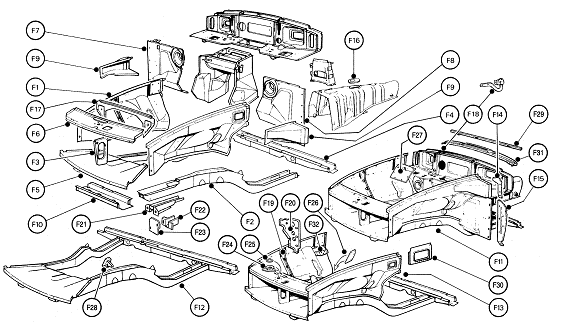

Front Body Panels

Key Part Number Description Model Price - UK £ inc.vat
F1 HZA4192 Wheelarch Front Assy RH Chrome £166.50
  HZA4192 Wheelarch Front Assy LH Chrome £166.50
  HZA5346 Wheelarch Front Assy RH Rubber £158.50
  HZA5347 Wheelarch Front Assy LH Rubber £158.50
F2 HZA438 Sidemember Front Assy RH Chrome £204.50
  HZA439 Sidemember Front Assy LH Chrome £204.50
  HZA4966 Sidemember Front Assy RH Rubber £249.95
  HZA4967 Sidemember Front Assy LH Rubber £249.95
F3 HZA461 Brkt Reinf Bonnet Lock P/form Chrome £18.55
  HZA4618 Brkt Reinf Bonnet Lock P/form Rubber £18.55
F4 HZA464 XMember Centre All £62.50
  HZA464H Half XMember Centre All £29.75
F5 HZA4604 Rad Duct Assy V8 cars £67.50
  HZA465 Rad Duct Assy Chrome £63.50
  HZA4851 Rad Duct Assy Rubber £41.50
F6 HZA388 Bonnet Lock Platform Chrome £41.50
  HZA4617 Bonnet Lock Platform Rubber £43.95
F7 HZA624 Pedal Box Assy RH Chrome £53.45
  HZA5335 Pedal Box Assy RH Rubber £58.50
  HZA4171 Pedal Box Assy RH NAS £60.50
F8 HZA703 Pedal Box Assy LH Chrome £49.75
  HZA4607 Pedal Box Assy LH Rubber £61.50
  HZA3507 Pedal Box Assy LH NAS Chrome £63.75
  HZA4671 Pedal Box Assy LH NAS Rubber £63.50
F9 HZA5320 Reinf W/Arch To P/Box RH All £24.50
  HZA5321 Reinf W/Arch To P/Box LH All £24.50
F10 HZA171 Radiator Duct Support Panel Chrome £24.25
  HZA4858 Front XMember Assy Rubber £26.25
F11 HZA4051 RHD Front U/Frame Complete Chrome £1475.00
  HZA5537 RHD Front U/Frame Complete Rubber £1645.00
  HZA4175 RHD Front U/Frame Complete NAS £1345.00
F12 BMH4000 Frt Chassis + Xmember Chrome £536.73
  BMH4001 Frt Chassis + Xmember Rubber £501.24
F13 BMH4002 BMH4000 & W/Arch Assy Chrome £825.12
  BMH4003 BMH4001 & W/Arch Assy Rubber £825.12
F14 HZA302 Splash Shield Flange RH All £6.36
  HZA303 Splash Shield Flange LH All £6.36
F15 HZA4304P Splash Plate RH Painted All £4.95
  HZA4304SE Splash Plate RH P/Coated All £10.95
  HZA4305P Splash Plate LH Painted All £4.95
  HZA4305SE Splash Plate LH P/Coated All £10.95
F16 HZA1431 G/Box Remote Control Cover 4 sync £5.25
F17 HZA2327 Rad Diaphragm Assy Chrome £47.50
F18 HZA364 Bonnet Hinge All £32.75
F19 HZA466 Rad Mtg Brkt RH Chrome £11.95
  HZA467 Rad Mtg Brkt LH Chrome £11.95
F20 HZA4514 Rad Mtg Brkt RH Rubber £14.25
  HZA4515 Rad Mtg Brkt LH Rubber £14.25
F21 HZA4866 Mtg Bumper Upper RH Rubber £14.85
  HZA4867 Mtg Bumper Upper LH Rubber £14.85
F22 HZA4818 Mtg Bumper Lower RH Rubber £11.25
  HZA4819 Mtg Bumper Lower LH Rubber £11.25
F23 HZA4814 Mtg Bumper End Plate Mtg Rubber £2.35
F25 4G3676 Thimble All £3.90
F26 AHH6992 Spacer Engine Mtg Chrome £3.85
F27 BHH1095 Cover Plate Pedal Box Rubber £5.25
F28 HZA392 Engine Mtg Bkt RH Chrome £16.95
  HZA393 Engine Mtg Bkt RH Chrome £16.95
  HZA4504 Engine Mtg Bkt LH Rubber £16.95
  HZA4505 Engine Mtg Bkt LH Rubber £16.95
F29 HZA1446 Tube Stiff A Post Assy Chrome £27.95
  HZA4868 Tube Stiff A Post Assy Rubber £28.55
  HZA3524 Tube Stiff A Post Assy NAS £28.55
F30 HZA158 W/Arch Ext to B/Head RH All £9.85
  HZA159 W/Arch Ext to B/Head LH All £9.85
F31 HZA162 Reinf Front Shroud All £24.50
F32 HZA4614 Oil Filter Mtg Brkt As Reqd £21.80
F33 HZA605 Upper Bulkhead Assy Chrome £389.50

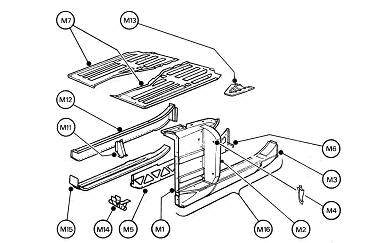

MGB Centre Body Panels

Key Part Number Description Model Price - UK £ inc.vat
M1 HZA403 Dash Side Assy RH All £51.50
  HZA404 Dash Side Assy LH All £51.50
M2 HZA442 A Post Assy RH Chrome £94.50
  HZA443 A Post Assy LH Chrome £94.50
  HZA5212 A Post Assy RH Rubber £94.50
  HZA5213 A Post Assy LH Rubber £94.50
  HZA3873 A Post Assy LH NAS £101.75
M3 HZA496 Sill Outer Assy RH All £57.50
  HZA497 Sill Outer Assy LH All £57.50
M4 BMH9508 W/Screen Leg Cover RH All £6.65
  BMH9509 W/Screen Leg Cover LH All £6.65
M5 HZA188 Sill Clsg Panel RH All £29.95
  HZA189 Sill Clsg Panel LH All £29.95
M6 HZA260 Filler Piece Rr Sill RH All £9.90
  HZA261 Filler Piece Rr Sill LH All £9.90
M7 HZA628 Main Floor Assy RH 4 sync £74.50
  HZA629 Main Floor Assy LH 4 sync £74.50
M8 HZA586 Rr Qtr Inner Assy RH All £19.95
  HZA587 Rr Qtr Inner Assy LH All £19.95
M11 HZA231 Reinf Jacking S/Member All £5.76
M12 HZA236 Sidemember Inner RH All £53.50
  HZA237 Sidemember Inner LH All £53.50
M13 HZA283 Plate Brace Heelboard Chrome £10.45
  HZA5019 Plate Brace Heelboard Rubber £10.45
M14 HZA492 Jack Mtg Assy All £14.41
M15 HZA238 Sidemember Bottom RH All £53.50
  HZA239 Sidemember Bottom LH All £53.50
M16 HZA688 Sill D/Side & A Post Assy RH Chrome £187.50
  HZA689 Sill D/Side & A Post Assy LH Chrome £187.50
  HZA5216 Sill D/Side & A Post Assy RH Rubber £187.50
  HZA5217 Sill D/Side & A Post Assy LH Rubber £187.50
  HZA3879 Sill D/Side & A Post Assy LH NAS £179.00

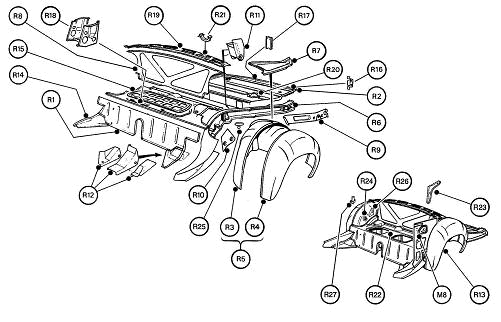

MGB Rear Body Panels

Key Part Number Description Model Price - UK £ inc.vat
R1 HZA488 Rr Heelboard Assy All £80.19
R2 HZA535 Trunk Floor Assy Chrome £112.50
  HZA5529 Trunk Floor Assy Rubber £94.10
R3 HZA4118 W/Arch Rr Inner Assy RH All £74.77
  HZA4119 W/Arch Rr Inner Assy LH All £74.77
R4 HZA138 Outer Rear W/Arch RH All £83.50
  HZA615 Outer Rear W/Arch LH All £75.15
R5 BMH9000 W/Arch Comp Assy RH All £139.31
  BMH9001 W/Arch Comp Assy LH All £139.31
R6 HZA3974 Rear SideMember Assy RH Chrome £182.20
  HZA3975 Rear SideMember Assy LH Chrome £182.20
  HZA4924 Rear Sidemember Assy RH Rubber £169.89
  HZA4925 Rear Sidemember Assy LH Rubber £169.89
R7 HZA160 Trunk Floor Outer RH All £18.83
  HZA161 Trunk Floor Outer LH All £18.83
R8 HZA167 Bulkhead Rear All £42.80
R9 HZA272 Clsg Panel Rr S/Member RH Chrome £16.37
  HZA273 Clsg Panel Rr S/Member LH Chrome £16.37
  HZA4908 Clsg Panel Rr S/Member RH Rubber £17.19
  HZA4909 Clsg Panel Rr S/Member LH Rubber £17.19
R10 HZA276 Plate Mtg Damper RH All £6.80
  HZA277 Plate Mtg Damper LH All £6.80
R11 HZA286 Rebound Strap Brkt RH Chrome £10.33
  HZA4960 Rebound Strap Brkt RH Rubber £10.33
  HZA287 Rebound Strap Brkt RH Chrome £10.33
  HZA4961 Rebound Strap Brkt RH Rubber £10.33
R12 BMH9002 Frt Rr Spring Mtg Assy RH Chrome £23.77
  BMH9003 Frt Rr Spring Mtg Assy LH Chrome £23.77
  BMH9004 Frt Rr Spring Mtg Assy RH Rubber £30.57
  BMH9005 Frt Rr Spring Mtg Assy LH Rubber £30.57
R13 HZA3971 Rear Underframe Comp Chrome £1243.67
  HZA5268 Rear Underframe Comp Rubber £1243.67
R14 HZA268 Heelboard Ext RH All £14.13
  HZA269 Heelboard Ext LH All £14.13
R15 AHH6716 Battery Cover Assy 2x6volt £30.83
  HZA4935 Battery Cover Assy 1x12volt £16.04
R16 HZA479 Rear Exh Mtg Bracket All £5.15
R17 HZA470 Rr Boot Lid Striker Reinf All £7.23
R18 BMH9507 Battery Box Assy 2x6volt £44.87
  BMH9511 Battery Box Assy 1x12volt £47.57
R19 HZA3515 Rear Deck Reinf All £36.70
R20 AHA5741 Spare Wheel Mtg Brkt All £6.76
R21 AHA6314 Boot Lid Hinge RH All £29.56
  AHA6315 Boot Lid Hinge LH All £29.56
R22 HZA115 Battery Shelf Panel 2x6volt £69.65
R23 HZA4914 Strengthener Heelboard 1x12volt £4.90
R24 HZA3931 Mtg Boss Assy Seat Belt All £9.32
R25 HZA4101 Retainer Assy Bump Stop All £8.36
R26 BMH9512 Assy Seat Belt Mtg RH All £21.67
  BMH9513 Assy Seat Belt Mtg LH All £21.67
R27 BHH611 Socket Mtg Tonneau Bar All £9.17

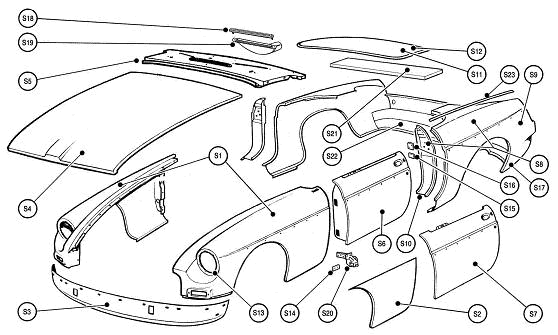

MGB Outer Panels

Key Part Number Description Model Price - UK £ inc.vat
S1 HZA409 Front Wing Assy RH Early £395.00
HZA410 Front Wing Assy LH Early £395.00
HZA3842 Front Wing Assy RH Chrome £395.00
HZA3843 Front Wing Assy LH Chrome £395.00
HZA4832 Front Wing Assy RH Rubber £395.00
HZA4833 Front Wing Assy LH Rubber £395.00
HZA4085 Front Wing Assy Chrome RH NAS £395.00
HZA4265 Front Wing Assy Chrome LH NAS £395.00
HZA4824 Front Wing Assy Chrome RH NAS £395.00
HZA4825 Front Wing Assy Chrome LH NAS £395.00
S2 HZA220 Frt Wing Lwr Repair RH All £47.50
HZA221 Frt Wing Lwr Repair LH All £47.50
S3 HZA132 Front Valance No Vent Holes Early Chr £ 68.50
HZA592 Front Valance 2 Vent Holes Late Chr £75.25
HZA4812 Front Valance Rubber £76.95
S4 HZA401 Aluminium Bonnet All £535.00
HZA4014 Steel Bonnet All £345.00
ZKC5425 Bonnet Assy MG RV8 £435.00
S5 HZA672 Shroud Complete Assy RHD Chr £103.50
HZA4932 Shroud Complete Assy RHD Rub £115.50
HZA3820 Shroud Complete Assy NAS Chr £115.50
S6 HZA5508 Door Assembly RH All £329.00
HZA5509 Door Assembly LH All £329.00
S7 HZA566 Door Skin RH All £68.50
HZA567 Door Skin LH All £68.50
S8 HZA4218 Rear Wing Comp Assy RH Chrome £485.50
HZA4219 Rear Wing Comp Assy LH Chrome £485.50
HZA4900 Rear Wing Comp Assy RH Rubber £485.50
HZA4901 Rear Wing Comp Assy LH Rubber £485.50
S9 HZA4224 Rear Wing No B Post RH Chrome £465.00
HZA4225 Rear Wing No B Post LH Chrome £465.00
HZA5000 Rear Wing No B Post RH Rubber £465.00
HZA5001 Rear Wing No B Post LH Rubber £465.00
S10 HZA582 B Post Assy RH All £52.95
HZA583 B Post Assy LH All £52.95
HZA4156 B Post Assy RH NAS £68.50
HZA4157 B Post Assy LH NAS £68.50
S11 HZA5511 Boot Lid Assy All £275.00
ZKC5429 Boot Lid Assy MGRV8 £319.00
S12 HZA117 Boot Lid Skin All £88.50
S13 HZA484 HeadLamp Mtg Assy All £7.75
S14 HZA350 Tap Plate Door Hinge All £4.45
S15 HZA368 Tap Plate Door Striker Early £3.85
S16 ZKC5624 Tap Plate Striker Late £3.85
S17 HZA578 Rr Wing Repair RH Chrome £83.60
HZA579 Rr Wing Repair LH Chrome £83.60
HZA4840 Rr Wing Repair RH Rubber £83.60
HZA4841 Rr Wing Repair LH Rubber £83.60
S18 AHH8566 Escutcheon Demister All £8.75
S19 AHH8743 Demister Nozzle RH All £16.95
AHH8744 Demister Nozzle LH All £16.95
S20 BMH9502 Door Hinge Early Type RH Chrome £74.50
BMH9503 Door Hinge Early Type LH Chrome £74.50
BMH9504 D/Hinge & Check Spring RH Rubber £74.50
BMH9505 D/Hinge & Check Spring LH Rubber £74.50
S21 HZA4212 Rear Decking All £31.50
S22 HZA4217 Body Rear Lower Assy Chrome £142.50
HZA4850 Body Rear Lower Assy Rubber £103.50
S23 HZA352 Rear Fender Moulding All £27.95
